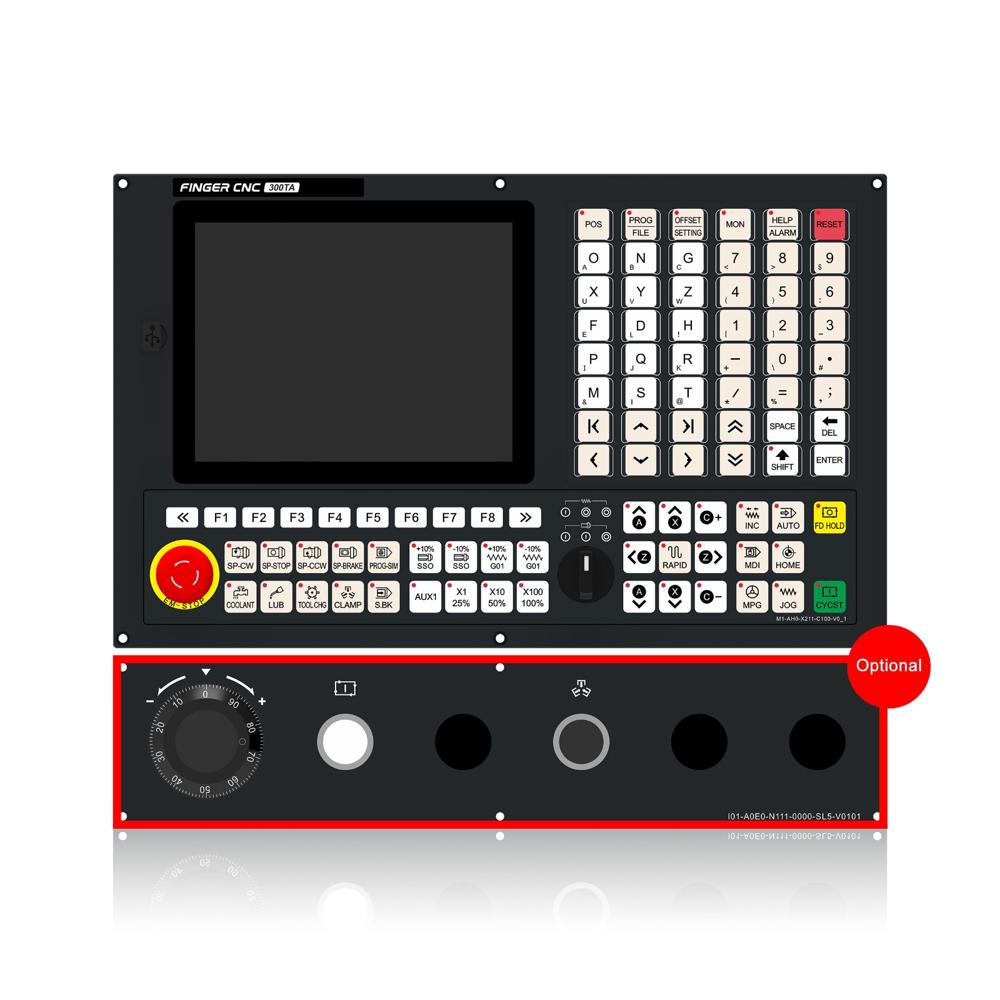

Finger CNC Lathe Turning Controller

About Finger CNC Lathe Turning Controller

Product Introduction

1. Supports IoT interface for real-time acquisition of machining data, making management more convenient.

2. Supports polar coordinate interpolation: by editing instructions in Cartesian coordinates, it can realize interpolation contour control between linear and rotary axes. Application scenarios: cam machining, outer diameter milling of workpieces, irregular workpiece milling.

3. Supports polygon cutting (flying cutter): Polygon cutting technology utilizes multi-spindle configuration to achieve fast polygon turning, greatly improving machining efficiency.

Hardware Introduction

1. Multi-core CPU architecture, ultra-high computing power platform, smoother operation.

2. Equipped with 2GB of large-capacity storage, ensuring smooth program execution and easy handling of diverse tasks.

3. High anti-interference design, passing 4.5KV EFT test and CE certification.

4. Supports high-stability RS485 communication, making peripheral expansion more reliable.

5. Supports high-speed USB3.0 communication, enabling faster data backup and program import.

6. Equipped with ultra-long power-off retention function, real-time user data recording, stable and reliable.

7. More reasonable key layout and ergonomic design, easier to operate.

8. Pre-reading rate of 1000 Block/s.

9. Maximum supported IO points: 32.

10. Integrated auxiliary panel design with more reasonable key layout.

11. Uses high-performance CPU as the core computing unit of the CNC system, responsible for processing and executing various CNC commands, programs, and data operations. High-performance CPU can quickly respond to and process a large number of command messages, ensuring system real-time performance and efficiency.

12. High-resolution window display, better visual effect.

13. 8-inch operation panel with black membrane design, better protection, stronger durability, easier operation.

14. 10.4-inch and 15-inch color key designs, different function keys distinguished by colors, higher recognition, mechanical keys for easier operation.

15. Rotary switch ratio adjustment, more intuitive and convenient operation.

16. Digital tube displays the current tool number, making it more intuitive and noticeable.

Software (Function) Introduction

1. Linux RT operating system, higher real-time performance and faster speed.

2.Open UI platform and PLC platform provide developers and system integrators with unlimited innovation space and flexibility, promote rapid iteration and deep integration of technology, accelerate the deployment and optimization of intelligent solutions, and ultimately bring users a richer, more efficient, and customized service experience.

3. Flexible permission allocation significantly improves system flexibility and customization, ensuring each user or role gets appropriate access rights and security.

4. Supports graphic simulation, conversational programming, and M-code customization.

5. Supports tool life management and operation recording functions, ensuring accurate tracking and efficient maintenance during production.

6. Fast execution speed: short PLC scan time enables quick response to machining instructions, improving machining efficiency.

7. Supports up to 40 tool compensation groups to meet complex machining requirements and improve production efficiency.

8. Handwheel preview function, single block execution function: during trial machining, the handwheel can be used to control the machine's machining speed and direction. The backtracking function effectively avoids machine collision caused by programming errors.

Precision Control for Modern Machinery

Engineered for demanding manufacturing environments, the Finger CNC Lathe Turning Controller offers seamless integration and accurate control for CNC systems. With user-friendly panel mounting and versatile Ethercat connectivity, this controller elevates both productivity and automation. Its compact size and energy-efficient 24 Watt DC input make it a perfect fit for various machine configurations.


Reliable Display Technology

Featuring a clear and durable HMAV display, this controller provides vital real-time feedback during operation. The robust display enhances machine monitoring and user interaction, ensuring operators remain informed and in full control. Its design prioritizes both functionality and long-lasting performance in varied industrial settings.


Adaptable and Secure Installation

Designed for straightforward panel mounting, the controller can be easily integrated into existing setups. The compact footprint allows for efficient use of control panel space, supporting neat and organized installations. The package comes with a comprehensive 1-year warranty, guaranteeing reliability and user peace of mind.
